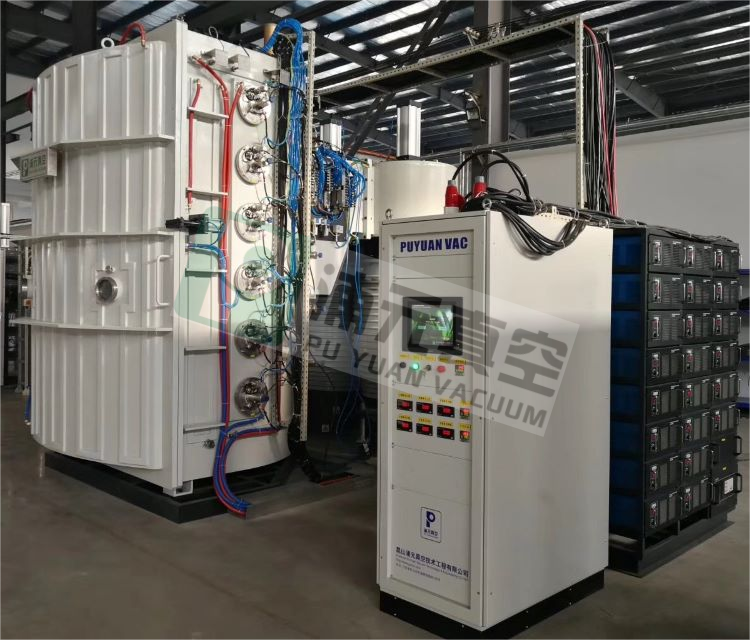

CJHL Series Magnetron Multi-arc Vacuum Coating Machine
Date:2016-01-13 10:08:50 Hits:5272
CJHL Series Magnetron Multi-arc Vacuum Coating Machine is integrated with multi-arc ion coating film and magnetron sputtering and coating film deposition technologies and integration, especially applies to coating a variety of metal films, multilayer film, alloy film chemicals, such as coating the super-hard wear-resistant film, anti-corrosion film and decorative film (gold, silver, black, red, blue, green and other colors), the multilayer films can be coated in combining with the magnetron sputtering technology, stainless steel, aluminum, titanium, tungsten and other metal films can also be coated, such as TiN, TiC, TiCN, TiAlN, CrN, CU, AU, diamond film (DLC), decorative film and the nonmetal and its compound layer and the composite film.
It applies to hardware, glass crafts, ceramic crafts, such as watches, mobile phone metal shell, sanitary ware, mould, electronic products, crystal glass, glasses, cutlery, knives and so on. In recent years, the arc ion coating technology has been greatly developed from the original single small arc source to column arc source and large flat arc. And the combination with the frequency magnetron sputtering technology makes the machine with broader application, such as the application of the hard coat layer, application of more smooth fine decorative coatings.
1) It is equipped with a low-temperature auxiliary ion beam source, directly cool coat the film at room temperature without heating, energy saving and productivity improvement.
2) It combines with the characteristics of magnetic and multi-arc coating, with wide covering field and a variety of materials can be coated with various types of functional film, decorative film and functional film with a decorative effect.
Model | CJHL-600 | CJHL-800 | CJHL-1000 | CJHL-1200 | CJHL-1400 | CJHL-1500 | CJHL-1600 |
vacuum chamber dimensions | φ600X800MM | φ800X1000MM | φ1000X1200MM | φ1200X1400MM | φ1400X1600MM | φ1500X1500MM | φ1600X1800MM |
vacuum system | KT400
Diffusion pump unit | KT500
Diffusion pump unit | KT500
Diffusion pump unit | KT630
Diffusion pump unit | 雙KT630
Diffusion pump unit | 雙KT630
Diffusion pump unit | 雙KT630
Diffusion pump unit |
Coating system | Dc power supply or intermediate frequency power supply + many arc coating power, multi-functional twin target + rectangular planar target, the circular arc cylindrical magnetron arc more dual target (optional) |
Coating auxiliary system | The low temperature ion secondary sources (except tool plating without heating system) |
Inflation system | Mass flowmeter | Mass flowmeter | Mass flowmeter | Mass flowmeter | Mass flowmeter | Mass flowmeter | Mass flowmeter |
Control mode | Manual or automatic | Manual or automatic | Manual or automatic | Manual or automatic | Manual or automatic | Manual or automatic | Manual or automatic |
Pumping rate | 5X10-3Pa<15min | 5X10-3Pa<15min | 5X10-3Pa<15min | 5X10-3Pa<15min | 5X10-3Pa<15min | 5X10-3Pa<15min | 5X10-3Pa<15min |
Ultimate vacuum | 5.0X10-4Pa | 5.0X10-4Pa | 5.0X10-4Pa | 5.0X10-4Pa | 5.0X10-4Pa | 5.0X10-4Pa | 5.0X10-4Pa |
Remarks | Above equipment parameters for your reference only, specific according to customers' special requirement of practical process design |
