DN Series Multi-functional Vacuum Coating Machine
Date:2016-01-13 10:12:04 Hits:7545

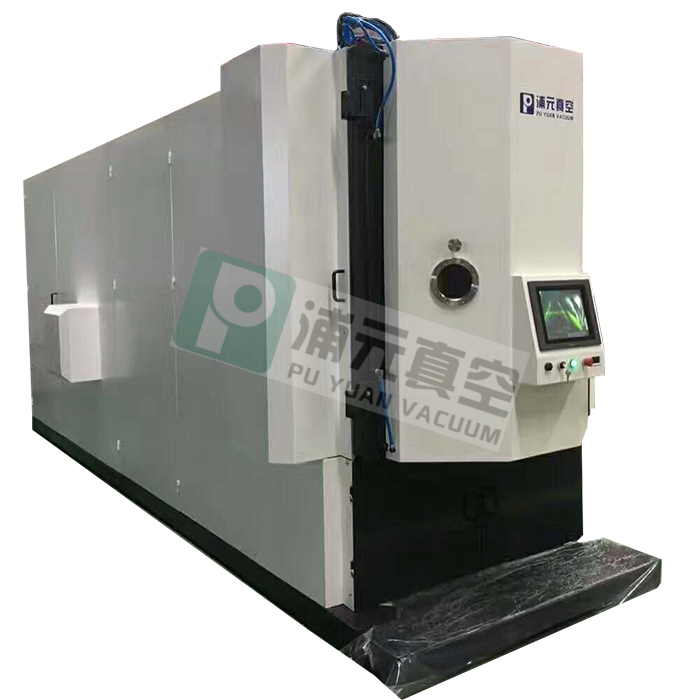

DN Series Multi-functional Vacuum Coating Machine is a combination of a number of coating technologies of multi-arc ion, magnetron sputtering, optical electron beam, resistive evaporation, and is maximum performance test on the control of the mechanical structure and the electrical. It is equipped with a specially designed film thickness monitor system, and controlled in integration using industrial computer PY3000 system automatic operation, and has the irreplaceable position in response to a special process of thin films.
1. Surfaces of cup handicrafts, ornaments, toys products produced by Plastic, resin, glass, ceramics and other materials and other surfaces are coated with aluminum, nickel, chrome and other metal film to make the coated surface with metallic feelings.
2. Plastic Resin Glass Lighting (tube. Cup cover, etc.), glass products, ceramic products and other products are coated with stainless steel, aluminum, titanium, tungsten and other metal alloy film, and functional film such as film or TiN, TiC film and other compound film.
3. Faucets, showers, case, cell phone case, eyeglass frames, dining tools, hardware, ceramic products, and other products are coated decorative film or functional film.
4. Gears, twist drill bits, screw tap and moulds are coated with super-hard coatings.
5. Non-ferrous metal products (such as copper, aluminum, zinc, magnesium, etc.) can be directly cool coated with the film without heating.
6. It can coat the shortwave, long wave pass, antireflection film, reflective film, filter membrane, beam splitter, band-pass film, dielectric film, highly reflective film, reflective film and various color film system with many layers, can achieve the system coating film 0-90 layer of film, but also can meet coating requirements for the products such as automotive reflective glass, binoculars, glasses, optical lens, cold cups and other products.
1) It is equipped with low-temperature auxiliary ion beam source, directly cool coat the film at room temperature without heating, energy saving and productivity improvement.2) It combines with the characteristics of multi-arc ion, magnetic sputtering, electron beam evaporation, with the widest covering fields. It can be coated with almost all categories of functional film and decorative film, is the necessary equipment for small production of high-end products or research.
Model | DN-600 | DN-800 | DN-1000 | DN-1200 | DN-1400 | DN-1500 | DN-1600 |
vacuum chamber dimensions | φ600X800MM | φ800X1000MM | φ1000X1200M | φ1200X1400MM | φ1400X1600MM | φ1500X1500MM | φ1600X1800MM |
vacuum system | KT630
Diffusion pump unit | A pair of
KT630
Diffusion pump unit | A pair of
KT630
Diffusion pump unit | A pair of
KT630
Diffusion pump unit | A pair of
KT800
Diffusion pump unit | A pair of
KT1000
Diffusion pump unit | A pair of
KT1000
Diffusion pump unit |
Coating system | Dc power supply or intermediate frequency power supply more than + arc power + + E electron gun resistance evaporation boat + ion source + bar hall ion source (optional) |
Coating auxiliary system | The low temperature ion secondary sources (except tool plating without heating system) |
Inflation system | Mass flowmeter |
Control system | Industrial computer automatic control (industrial), online PYDNB3000 film preparation system |
Control mode | Manual, semi-automatic and fully automatic |
Film thickness monitoring system | Quartz crystal film thickness monitoring system, monitoring system after the optical film | Quartz crystal film thickness monitoring system, monitoring system after the optical film | Quartz crystal film thickness monitoring system, monitoring system after the optical film | Quartz crystal film thickness monitoring system, monitoring system after the optical film | Quartz crystal film thickness monitoring system, monitoring system after the optical film | Quartz crystal film thickness monitoring system, monitoring system after the optical film | Quartz crystal film thickness monitoring system, monitoring system after the optical film |
Pumping rate | 5X10-3Pa
<15min | 5X10-3Pa
<15min | 5X10-3Pa
<15min | 5X10-3Pa
<15min | 5X10-3Pa
<15min | 5X10-3Pa
<15min | 5X10-3Pa
<15min |
Ultimate vacuum | 5.0X10-4Pa | 5.0X10-4Pa | 5.0X10-4Pa | 5.0X10-4Pa | 5.0X10-4Pa | 5.0X10-4Pa | 5.0X10-4Pa |
Remarks | Above equipment parameters for your reference only, specific are according to customers' special requirement of practical process design import molecular pump unit (optional) |
